specifications
12V
Operating current
-
Outlet diameter, mm
1.9l/min
Capacity
SEAFLO

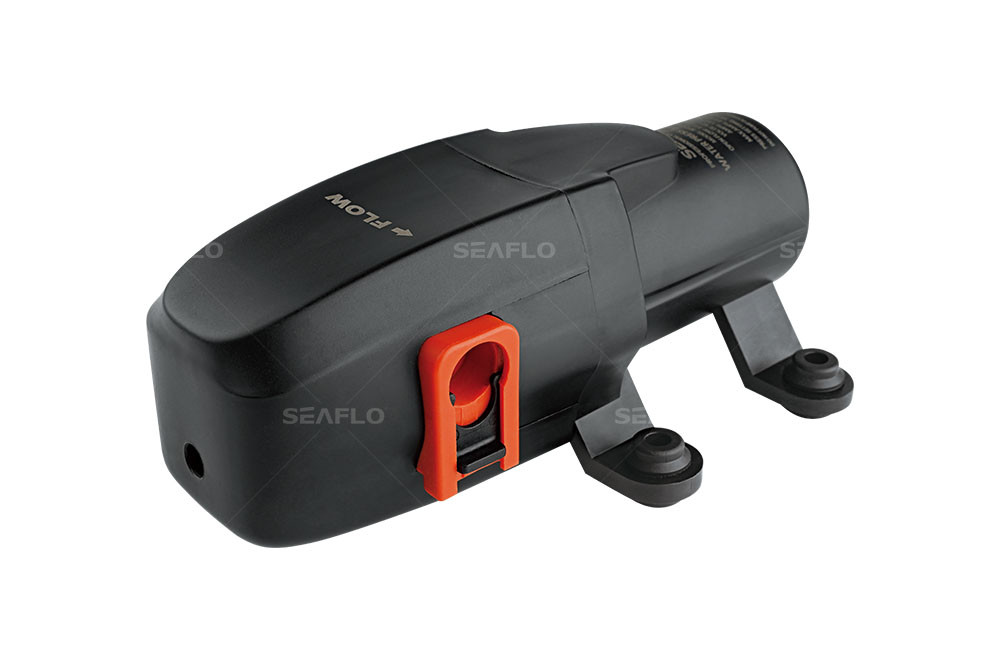

Pressure water pump SEAFLO 12v 1.9lpm/0.5gpm 70psi/4bar SFDP1-005-070-23A
SKU: SFDP100507023A
SEAFLO 23 Series diaphragm pump is design for wider applications of liquid transfer, pressurization and circulation. 23 Series is compact design but flow rate is up to 1.5GPM (5.6LPM), and pressure is up to 120PSI (8.2Bar). 23 Series supports flexible customization. Firstly its control type can choose from demand, by pass, no switch, manual switch and any combination of these types. Secondly, with compatible fixtures, 23 series can easy connect to any industrial port. Thirdly, 23 series can be customized to use for water, chemicals and food grade. SFDP1-005-070-23A
€31.50
/ pcs. Incl. VAT
Excl. VAT: €26.03
Available from supplier warehouse
Delivery: 3-14 business days
Secure payment
14-day returns
Warranty
0.7 kg
2 years
Omniva: M

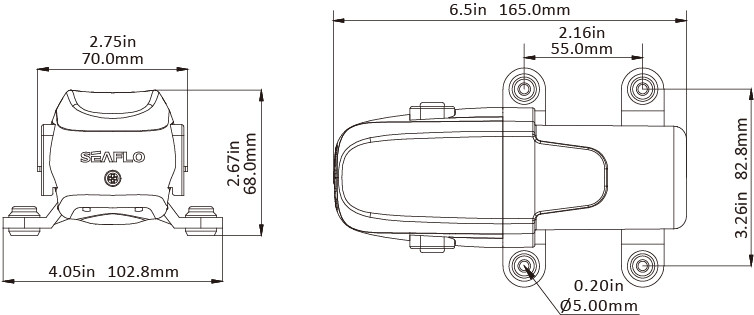

12x19.5x8 cm
Description

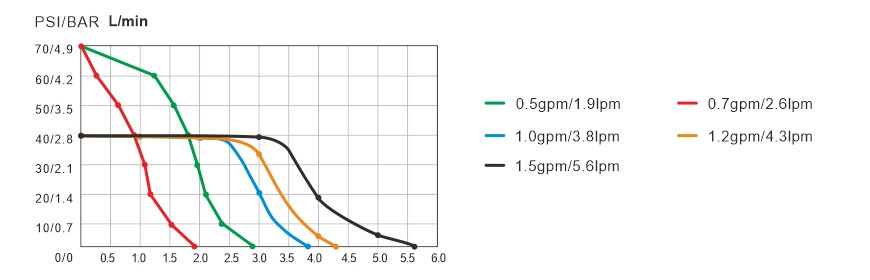

• Open flow up to 1.5gpm/5.6lpm
• Dry run capability
• Max Self-priming up to 5 feet/1.5m
• Waterproof grade IP54 with extra cover

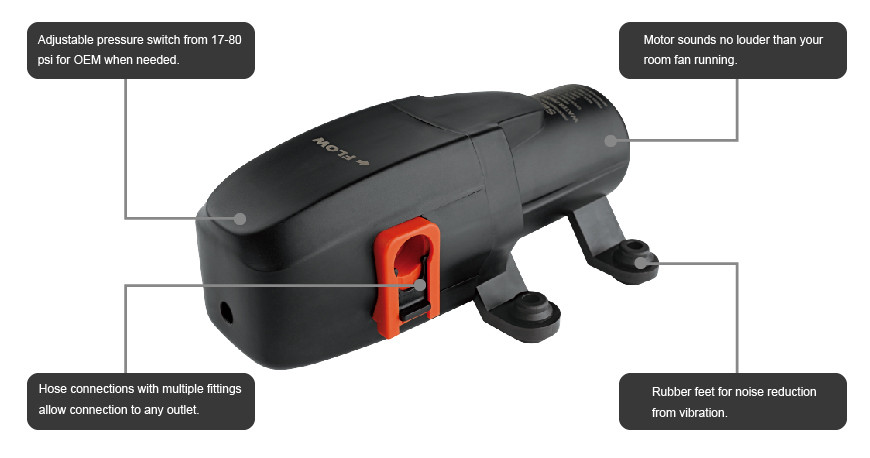

• On-demand long life pressure switch
• Configurable reflux function
• Adapt to a variety of scenarios

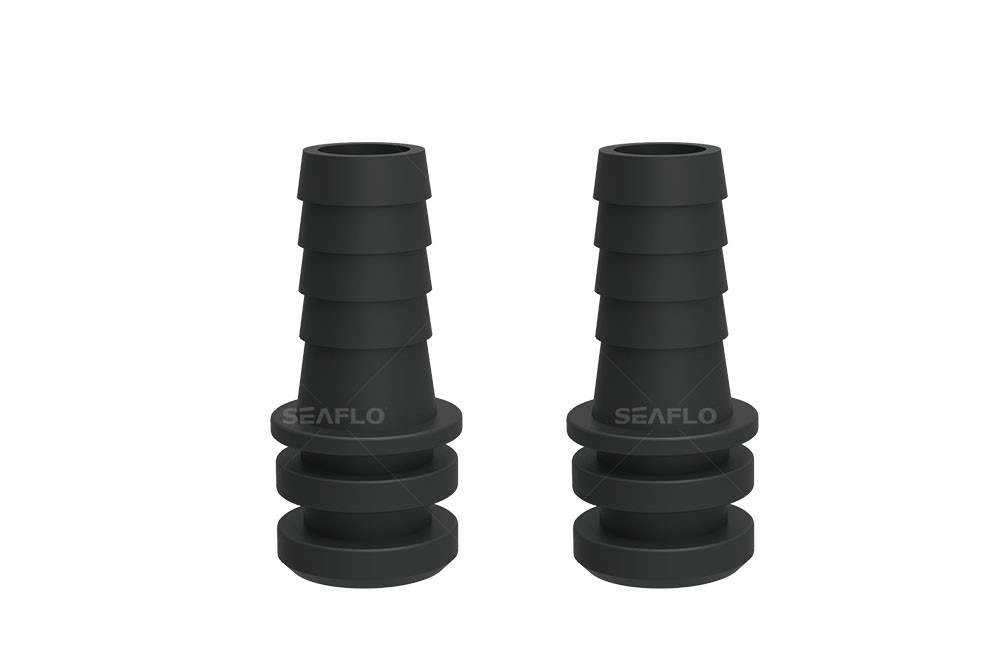

• Multiple connector options
• By pass technology reduces cycling
• Ignition protected, CE, RoHS
